Create reliable JSON from AI with built in checks. This workflow turns a plain text prompt into clean, structured data your team can trust. It suits teams that need AI text but must load results into dashboards, apps, or reports.

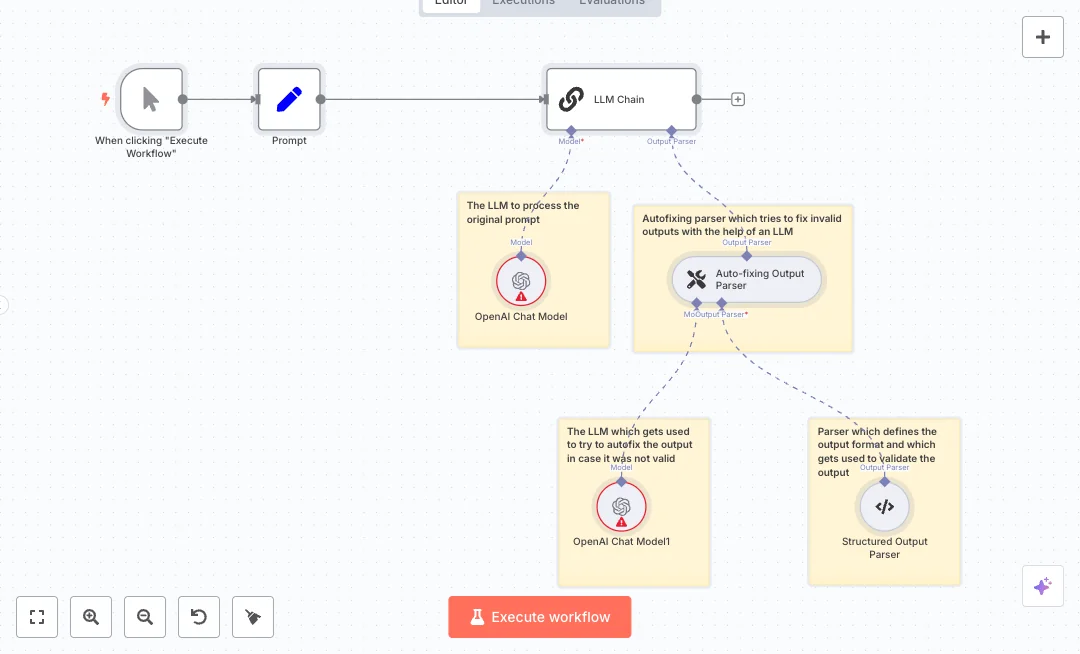

You click run to start. A Set node holds your prompt. An LLM Chain sends it to an OpenAI Chat Model set to zero temperature for stable answers. A Structured Output Parser defines the exact JSON schema the answer must follow. If the model strays from the schema, an Auto fixing Output Parser uses a second OpenAI model to repair the result and validate it again. The chain only passes data that matches the rules, which cuts manual rework and prevents bad records from entering your systems. This pattern is helpful when you want repeatable fields and values from AI.

All you need is an OpenAI API key and a clear schema. Change the prompt and schema to match your use case, then test by running the workflow and checking the JSON result. Expect fewer data errors and faster handoffs when pushing AI output into dashboards, product catalogs, or analytics jobs.

• Manual run trigger lets you test safely before scaling.
• Set node stores a customizable prompt that defines the task.
• OpenAI Chat Model runs at temperature 0 for consistent answers.
• Structured Output Parser enforces a strict JSON schema with required fields and types.
• Auto fixing Output Parser repairs invalid outputs using a second OpenAI model and revalidates.
• LLM Chain connects the model and parser so only valid data moves forward.
• Sticky notes document each stage to make edits and handoffs easier.

• Reduce manual QA from 30 minutes to 2 minutes per batch
• Improve data quality by up to 90 percent of entries meeting the schema
• Automate 80 percent of fixes for invalid JSON using auto fixing
• Handle 5 to 10 times more AI generated records with the same team
• Produce consistent fields ready for import into databases and reports

1. Import the template into n8n: Create a new workflow in n8n > Click the three dots menu > Select 'Import from File' > Choose the downloaded JSON file.
2. You'll need accounts with OpenAI. See the Tools Required section above for links to create accounts with these services.
3. In your OpenAI account, create an API key and copy it. Keep it secure.
4. In the n8n credentials manager, double click an OpenAI Chat Model node, then on the Credential to connect with dropdown, click Create new credential, and follow the on screen steps to add your OpenAI API Key.
5. Select your new OpenAI credential in both OpenAI Chat Model nodes so they share the same key.
6. Open the Set node named Prompt and replace the sample text with your own prompt and instructions.
7. Open the Structured Output Parser and define your JSON schema. Set field names and data types to match your target system.
8. Confirm connections: Structured Output Parser feeds the Auto fixing Output Parser and the Auto fixing Output Parser is selected as the parser in the LLM Chain.
9. Check both OpenAI nodes use temperature 0 for stable and repeatable outputs.
10. Click Execute Workflow. Inspect the output of the LLM Chain. Confirm the JSON matches your schema.
11. If validation fails, make the prompt more clear or relax strict fields in the schema, then run again.
12. If you see API errors, verify the OpenAI key, check account limits, and retry after a short wait.
